Servo controlled with 100% paper splicing success rate

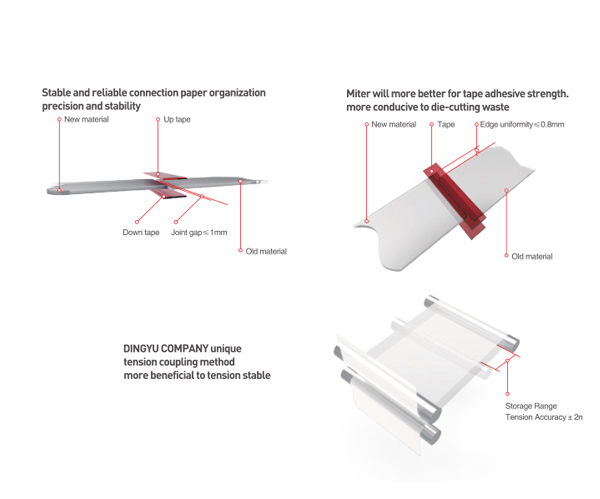

Stable tension control system,with unique tension coupling method
Paste tape on the front and back side
Maintenance-free storage racks
A/B axis-independent web guide control
Convenient material placement system
Pneumatic lift loading,operated by one person without any tools

Secondary tension system
Automatic Color mark Tracking
Max speed 250m/min

Paper : 60gsm-400gsm
Plastic film: > 25um
ABL/BPL tube laminated

Model	HAU-350	HAU-450	HAU-550
Max Web Width	350mm	450mm	550mm
Maximum Unwinding Diameter	Φ850	Φ850	Φ1000
Max Machine Speed	180m/min	180m/min	180m/min
Unwinding Connect Paper Time	2sec	2sec	2sec
Way Of Connect Paper	Oblique splice	Oblique splice	Oblique splice
Angle Of Paper Connect	10°	10°	10°
Pick Up Material Aligned	Laser positioning	Laser positioning	Laser positioning
Total Power	6kw	6kw	11kw
Voltage	380V/50hz, 3phase	380V/50hz, 3phase	380V/50hz, 3phase
Unwind Paper Connect Mode	manual / winding diamete	manual / winding diamete	manual / winding diameter
Unwind Tension Precision	±2%	±2%	±2%
Machine Weight	1500kgs	1600kgs	1700kgs
Machine Specifications (LxWxH)	2850x1100x2400mm	2850x1350 x 2400mm	2850x1550 x 2400m
Note: All technical parameters are subject to change without notice .
